VINE SHREDDERS
SOUSLIKOFF "ROTALEX" over-ground inter-row vertical-axis vine shredder
FEATURES
BENEFITS
OPTIONS
FEATURES
> vertical-axis shredding chamber + large diameter rotor
> hammer knives and counter-knives
> tubular pick-up with hydraulic chain drive
> no side casing + beetles rotor drive
> minimum tractor power 50 HP
> drive : mechanical rotor / hydraulic pick-up
> available in 800, 1000 and 1300mm widths
BENEFITS
> very fine grinding
> large opening for feeding pruned wood
> calibration grid with bars: reduced risk of jamming > Can be used on stony ground
> large opening for feeding pruned wood
> calibration grid with bars: reduced risk of jamming > Can be used on stony ground
OPTIONS
> hydraulic rakes
> hydraulic power shuttles
> entry side panels
> 3 fixed shanks for earthed up rows
3 points
Cat 1&2
1m40 <-> 1m60
2m00 <-> 2m50
2m50 <-> 3m00
1m40 <-> 1m60
2m00 <-> 2m50
2m50 <-> 3m00
Rotor: 540 rpm
Pick-up: 25l/min
180 bars
Pick-up: 25l/min
180 bar

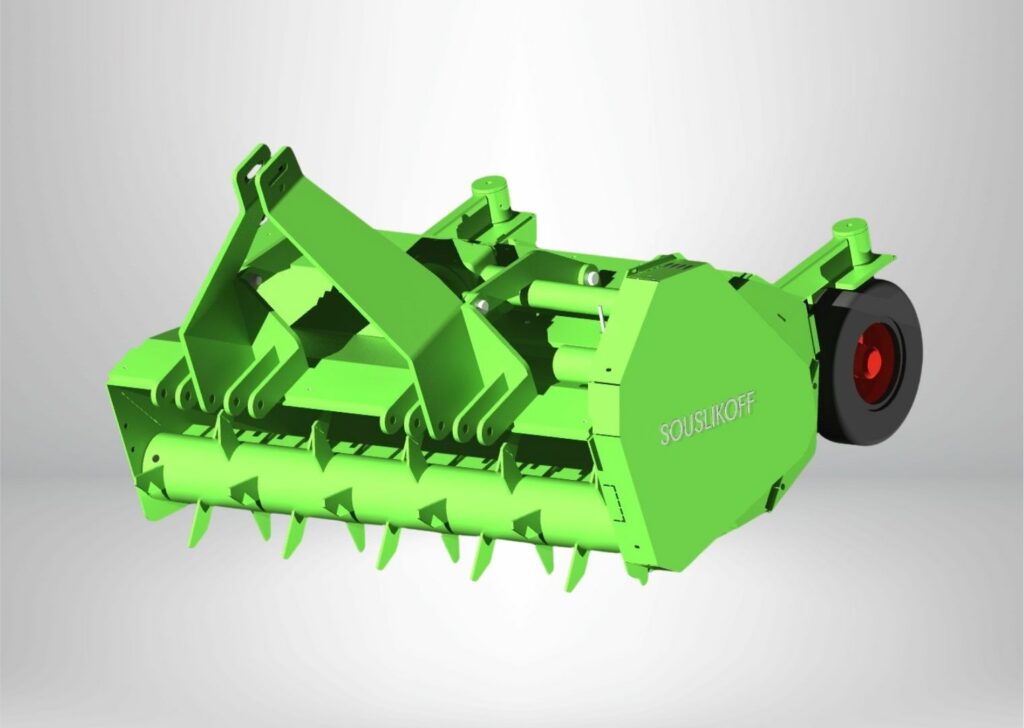

SOUSLIKOFF "BHI" over-ground inter-row horizontal-axis vine shredder
FEATURES
BENEFITS
OPTIONS
FEATURES
> horizontal-axis shredding chamber
> hammer knives and counter-knives
> tubular pick-up with hydraulic chain drive
> large opening = calibration grid with bars
> minimum tractor power 60HP
> drive : mechanical rotor
> hydraulic pick-up
> available i1000, 1250, 1500, 1750 mm widths
BENEFITS
> very fine grinding
> large opening for feeding pruned wood
> calibration grid with bars: reduced risk of jamming > Can be used on stony ground
> large opening for feeding pruned wood
> calibration grid with bars: reduced risk of jamming > Can be used on stony ground
OPTIONS
> hydraulic rakes
> hydraulic power shuttle
> fixed shanks for earthed up rows
> vine shoot collection bin for composting or recovery
> hydraulic power shuttle
> fixed shanks for earthed up rows
> vine shoot collection bin for composting or recovery
3 points
Cat 1&2
1m50 <-> 1m80
1m80 <-> 2m00
2m00 <-> 2m20
2m20 <-> 2m50
1m50 <-> 1m80
1m80 <-> 2m00
2m00 <-> 2m20
2m20 <-> 2m50
Rotor: 540 rpm
Pick-up: 25l/min
180 bars
Pick-up: 25l/min
180 bar
SOUSLIKOFF "BHE" over-ground horizontal-axis straddle vine shredder
FEATURES
BENEFITS
OPTIONS
FEATURES
> Driven by V-belts integrated into the body
> Shredding chamber with hammer knives and counter-knives screening grid
> Pick-up with 3 shanks per row
> Hydraulic version with gear motor, integrated freewheel
> Working with 500, 600, 800 mm > Overall widths 565, 660 et 860 mm
> Shredding chamber with hammer knives and counter-knives screening grid
> Pick-up with 3 shanks per row
> Hydraulic version with gear motor, integrated freewheel
> Working with 500, 600, 800 mm > Overall widths 565, 660 et 860 mm
BENEFITS
> overall width almost equal to working width
> very fine shredding and optimised break-up of vine shoots
> excellent collection quality
> pre-fitted for collection without changing the rotor
> very fine shredding and optimised break-up of vine shoots
> excellent collection quality
> pre-fitted for collection without changing the rotor
OPTIONS
> block or Bobard type fixing
> collector kit, chimney, recovery bin
> piston engine
> reinforced bearings
> rakes > Mechanically driven column
> collector kit, chimney, recovery bin
> piston engine
> reinforced bearings
> rakes > Mechanically driven column
Rotor: 540 rpm
0m90 <-> 1m10
1m00 <-> 1m20
1m20 <-> 1m50
0m90 <-> 1m10
1m00 <-> 1m20
1m20 <-> 1m50
Rotor: 540 rpm
Pick-up : 25l/min
180 bars
Rotor : 70l/min
180 bars
Pick-up : 25l/min
180 bar
Rotor : 70l/min
180 bar
RAKE KIT ADAPTABLE TO ALL BRANDS
FEATURES
BENEFITS
OPTIONS
FEATURES
> adjustable-speed hydraulic drive
> no other connections
> hard bristle brush
> rakes attached to the shredder
> 2 brush sizes, 500 et 600 mm
BENEFITS
> easy shredder fitting/removal + easy adjustment
> small footprint
> drive adjustment vs forward speed
> permanent contact with the ground for maximum shredder efficiency
> no accumulation of vine shoots at the edges
> no violent shocks to young plants
> clears the bottom of the vines after pre-pruning
> small footprint
> drive adjustment vs forward speed
> permanent contact with the ground for maximum shredder efficiency
> no accumulation of vine shoots at the edges
> no violent shocks to young plants
> clears the bottom of the vines after pre-pruning
OPTIONS
> second row of brushes
Toutes largeurs
Toutes largeurs
25l/min – 180 bars
25l/min – 180 bars
