SOUSLIKOFF INTER-VINE CULTIVATORS

NEW 2024

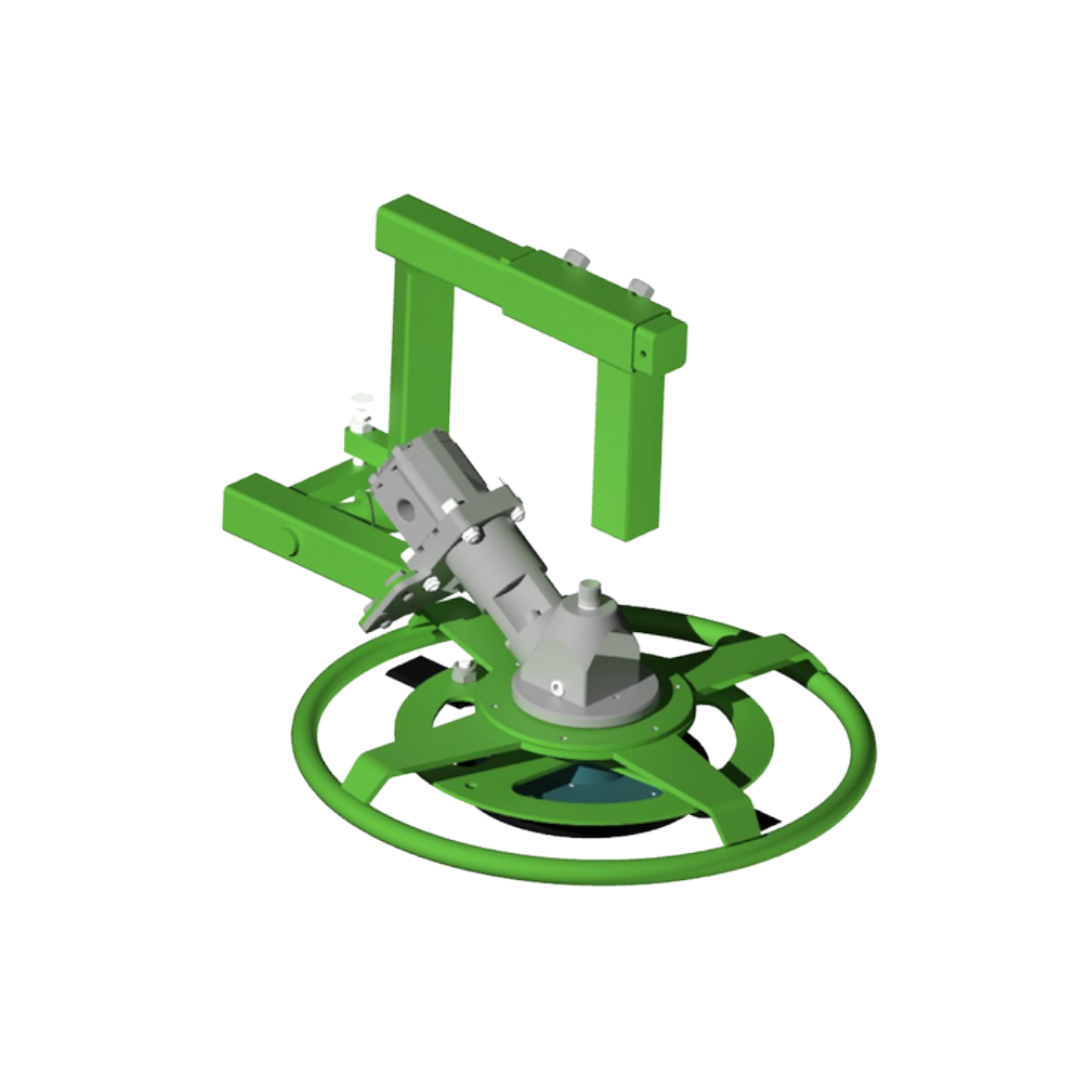

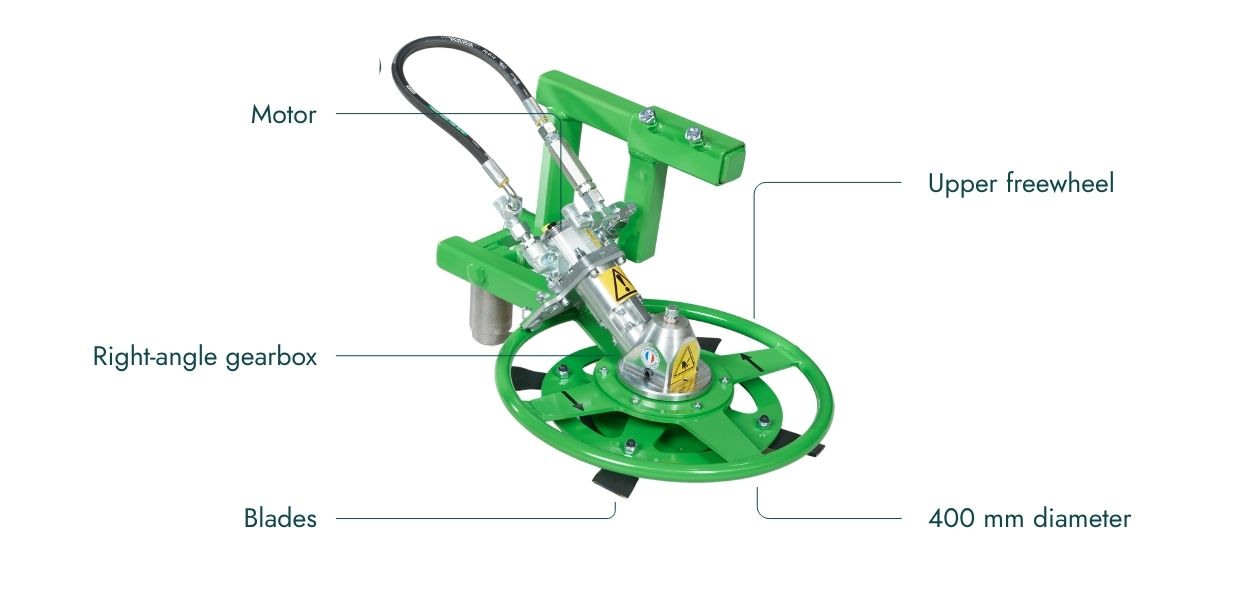

SOUSLIKOFF "COUPALEX" inter-vine mower

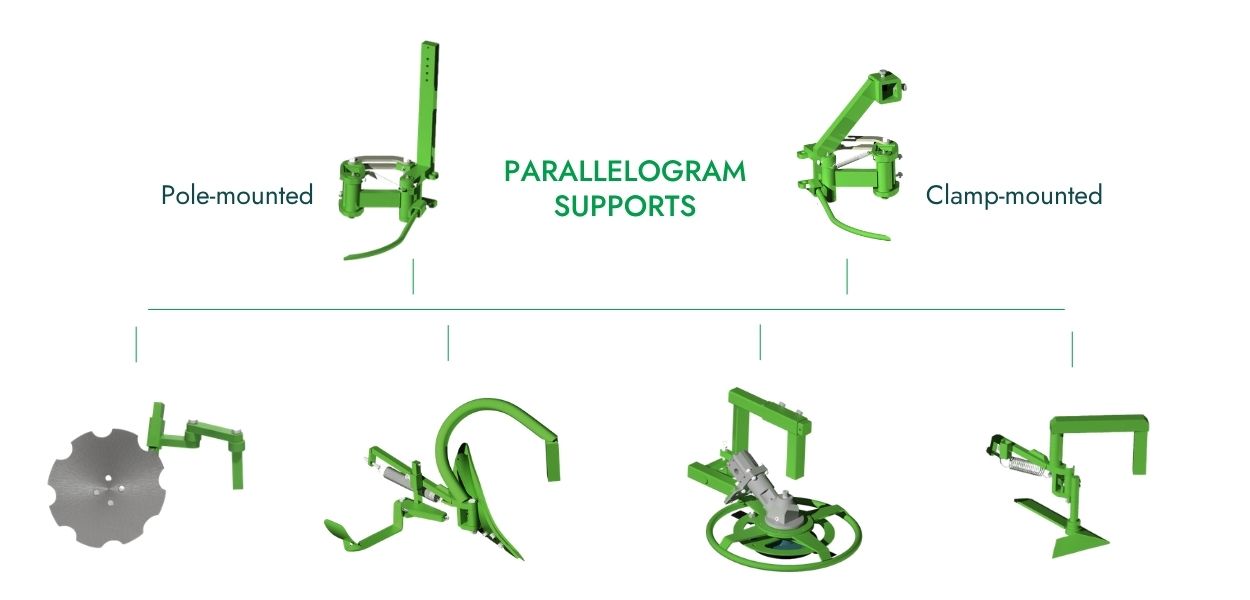

> parallelogram mounting – same as Decalex ou Binalex > sensor-less operation > sree disc movement around vine stocks > mowing height adjustment via bowl on the ground > under-row mowing head > mowing diameter 400 mm > cutting disc with retractable flails > motor with angle transmission to cut beneath the row > Rate 25-30 l/min at 180 bar
> passes beneath the row > low speed > mowing quality
> 3-branch trimmer blade > wire > mowing head only, to be mounted on a Decalex or Binalex parallelogram (removable gooseneck models)
Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto_enjambeur_milieu_1

All widths

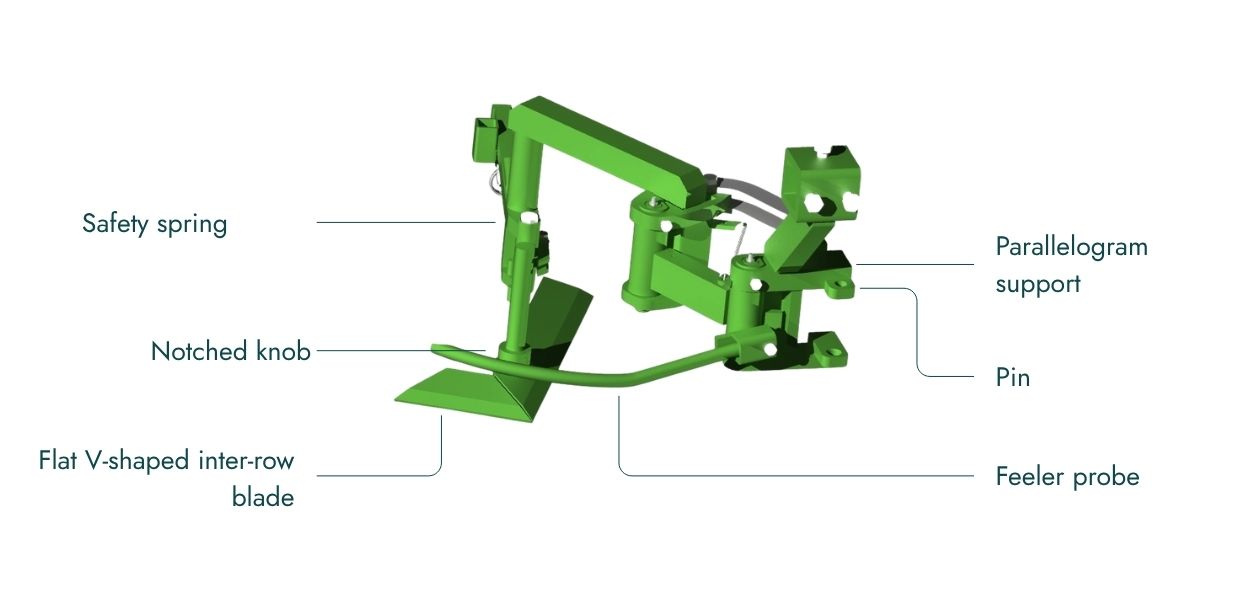

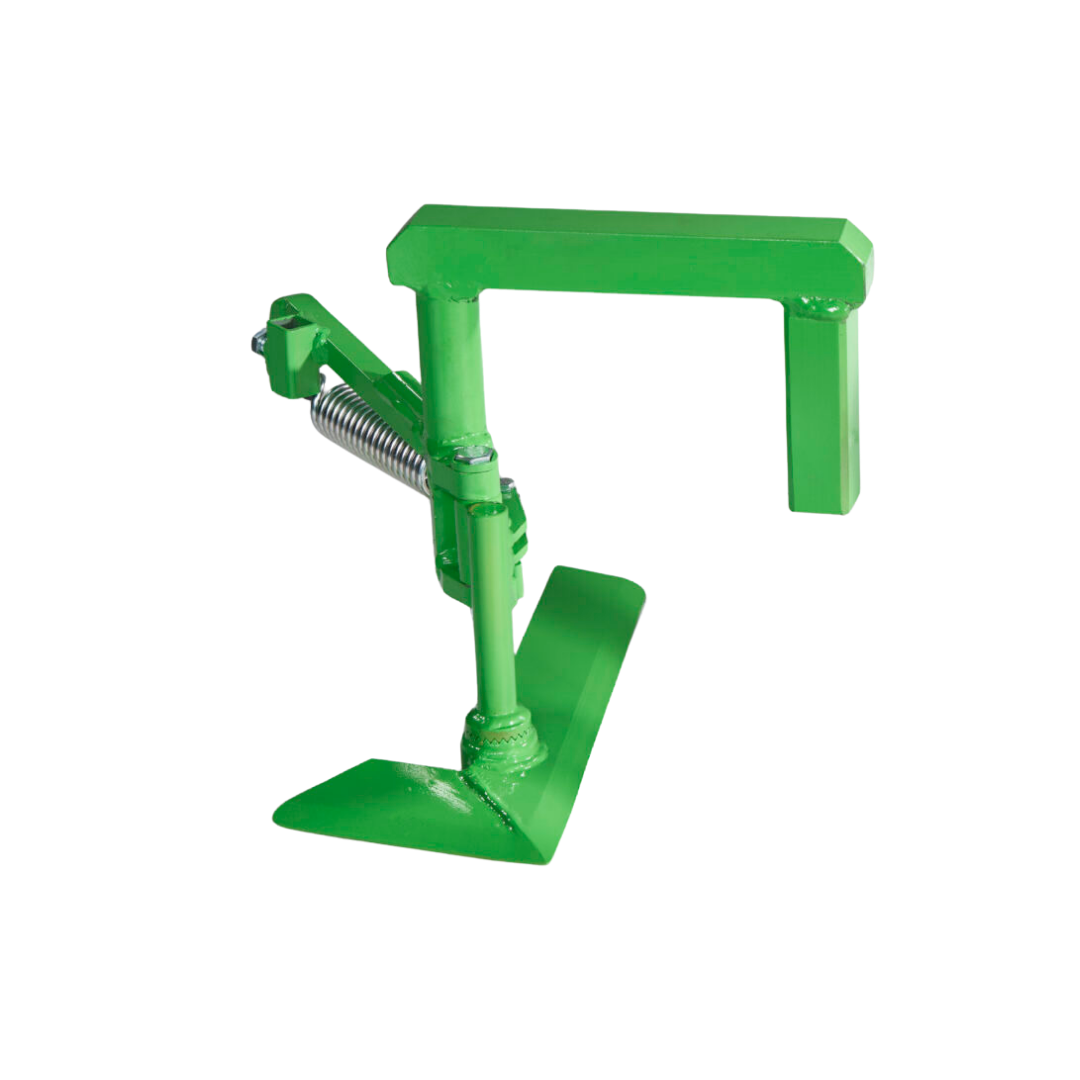

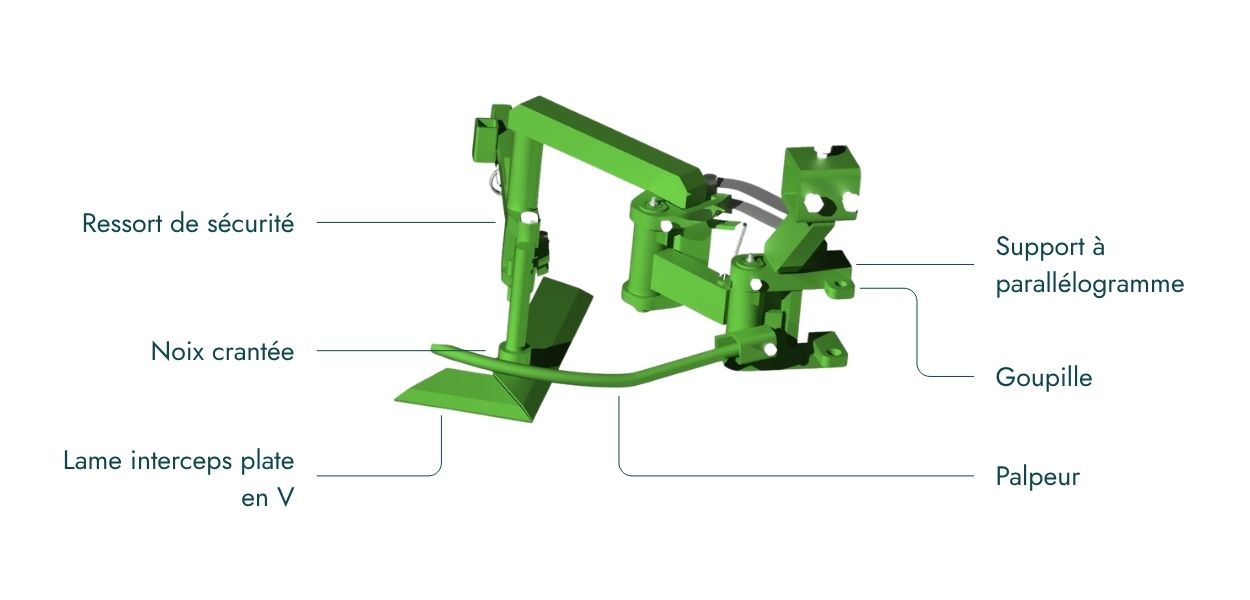

SOUSLIKOFF "BINALEX" inter-vine hoe

> parallelogram mounting – same as Decalex ou Binalex > sensor-less operation > sree disc movement around vine stocks > mowing height adjustment via bowl on the ground > under-row mowing head > mowing diameter 400 mm
> less risk of cutting the vines > adjustable guard and attack angle > high working speed (up to 6 km/h) > versatility: can be adapted to fit DECALEX
> DECALEX arm > hydraulic folding, lifting and angle adjustment
Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto_enjambeur_milieu_1

All widths

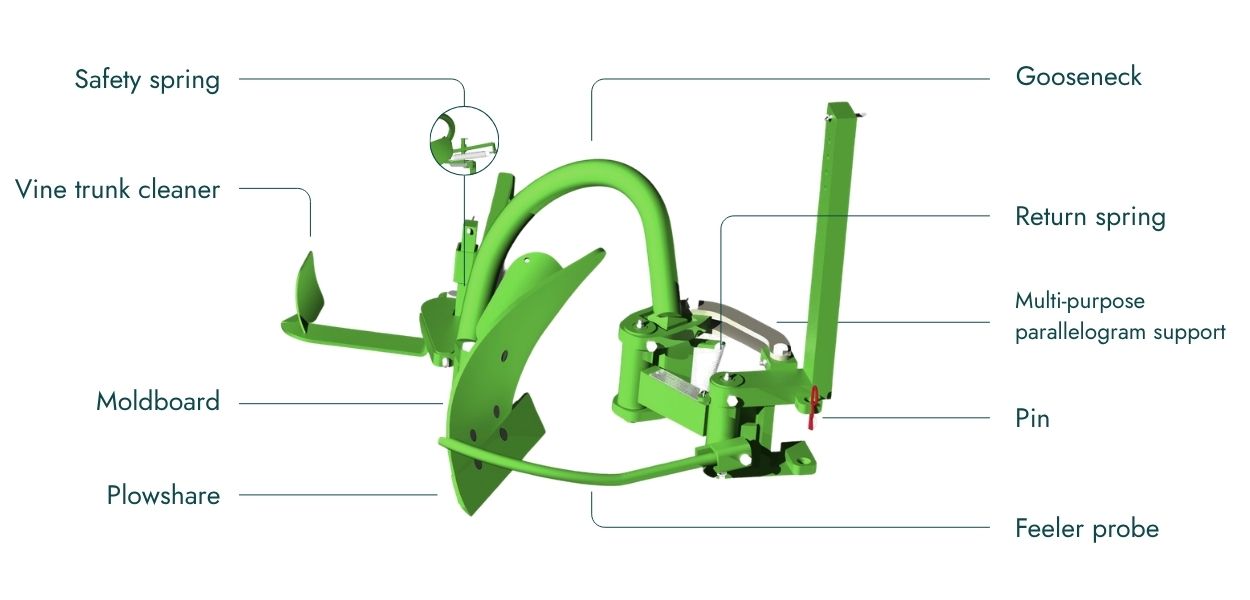

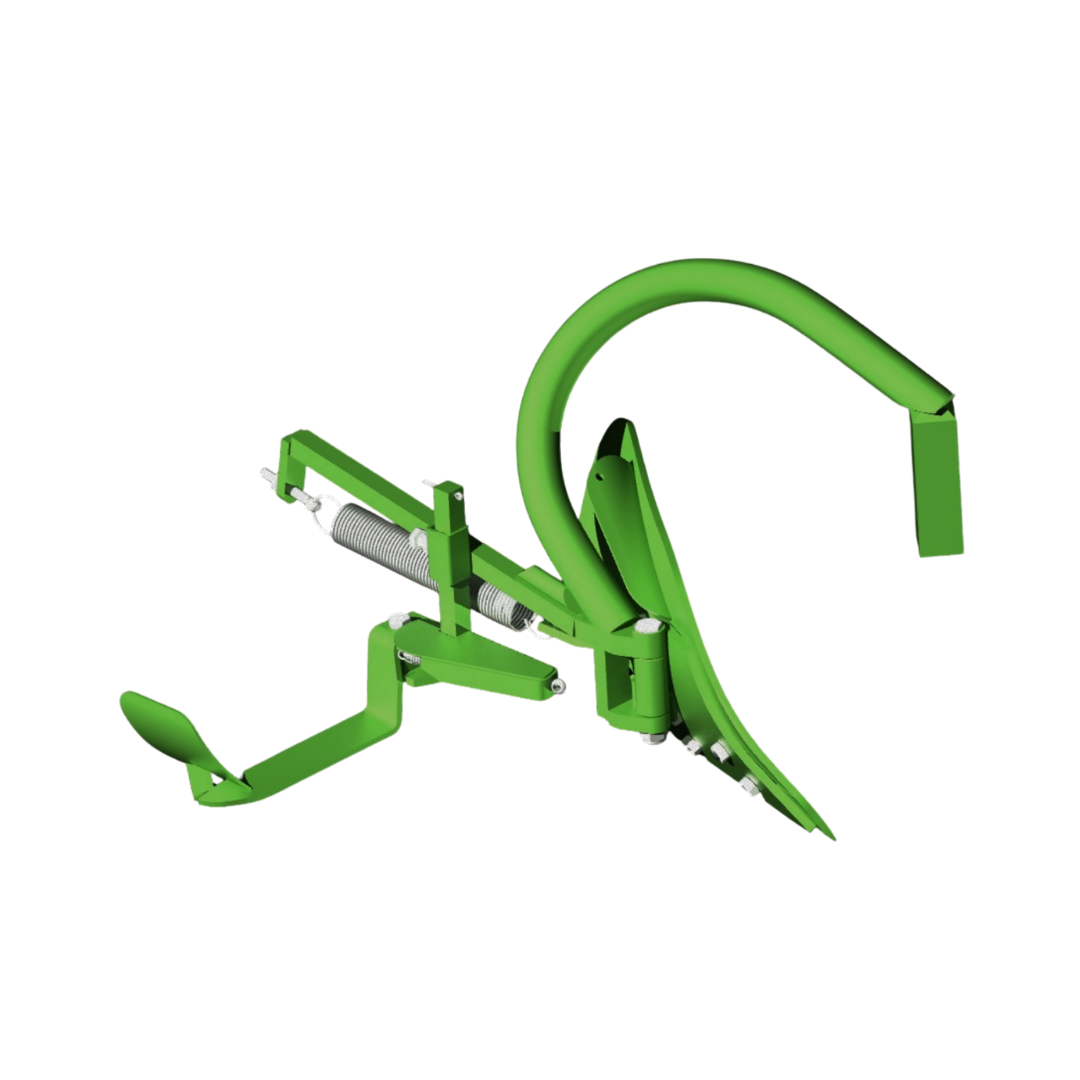

SOUSLIKOFF "DECALEX" inter-vine cultivator

> special moulboard favouring re-attack > work at shallow depths > parallelogram to detect vine stocks mechanically > non-stop spring safety > vine stock cleaner
> passes very close to the vines with no risk of cutting them > thorough cleaning with the vine stock cleaner > specific model with very low gooseneck to avoid damaging the grapes > driving strip always flat and firm (even in the rain) > less traumatic re-cultivation of weeded vines > less traumatic re-cultivation of weeded vines > tractor stability
> BINALEX arm > repliage, relevage, réglage du dévers hydraulique > counter-plate > extended shares

Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto_enjambeur_milieu_1

All widths

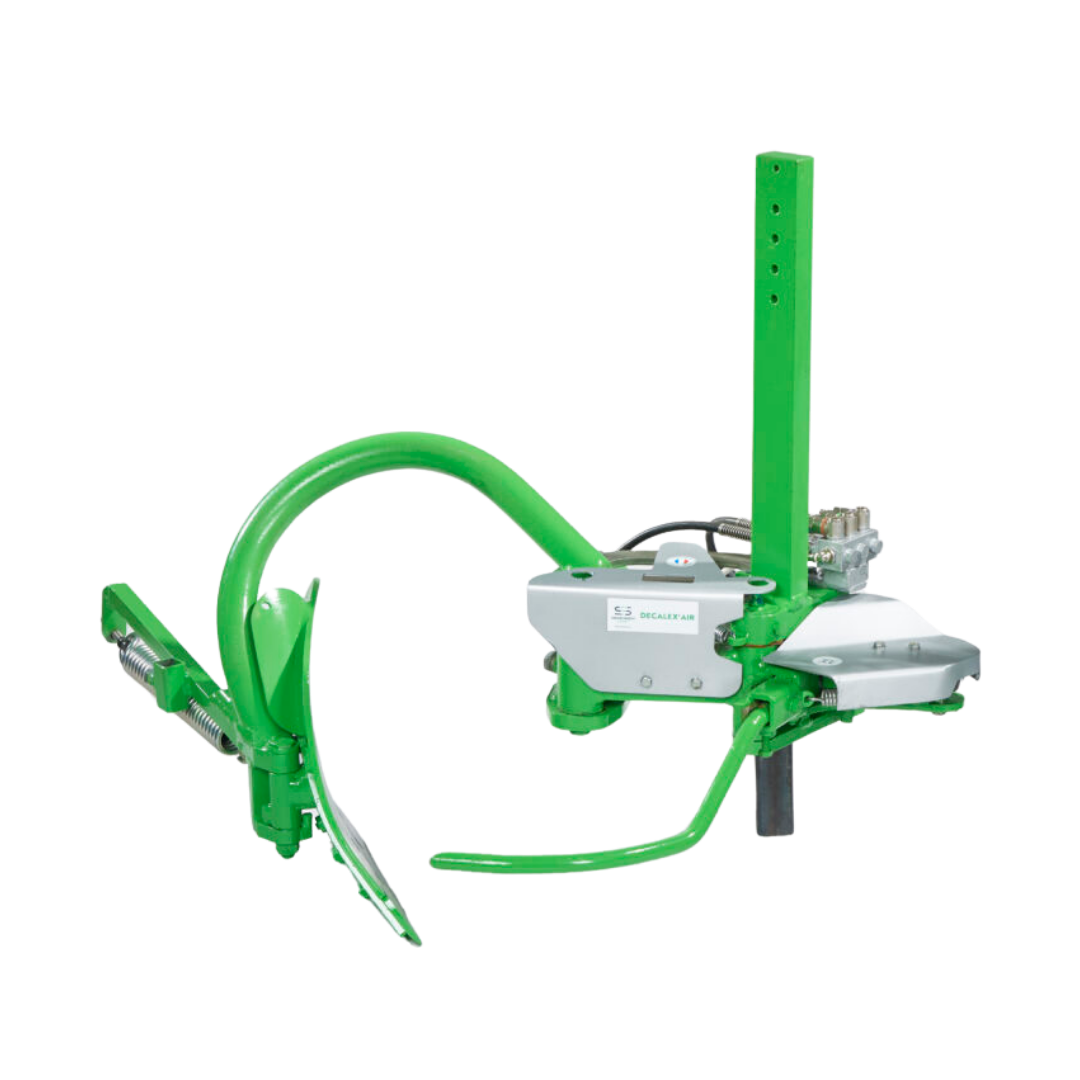

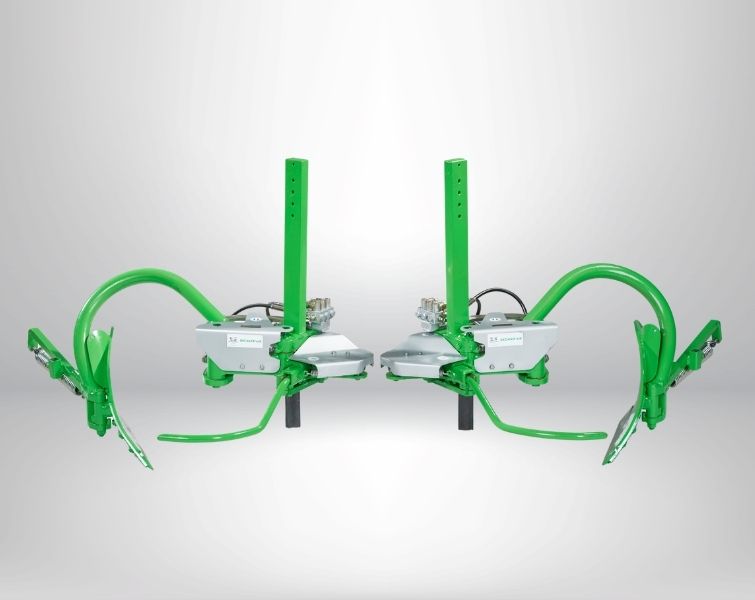

SOUSLIKOFF "DECALEX AIR" inter-vine cultivator
(patented system)

> pneumatically assisted tool based on the mechanical DECALEX > air generated by compressor driven by to PTO cylinder set in motion by a contactor, actuated by the sensor > air pressure between 5 and 10 bar > in/out movement controlled from the driving seat
> air used instead of oil: no pollution in the event of a leak, no regular oil changes, low power consumption > remote tool control > fully pneumatic control in the working area > > adjustable sensitivity (sensor force and actuator speed) > reduced pressure on young vines (spring effect of compressed air) > guaranteed geometry comparable to power steering
> BINALEX arm > counter-plate

Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto Outillage Souslikoff alimentation pneumatique
Picto_enjambeur_milieu_1

All widths

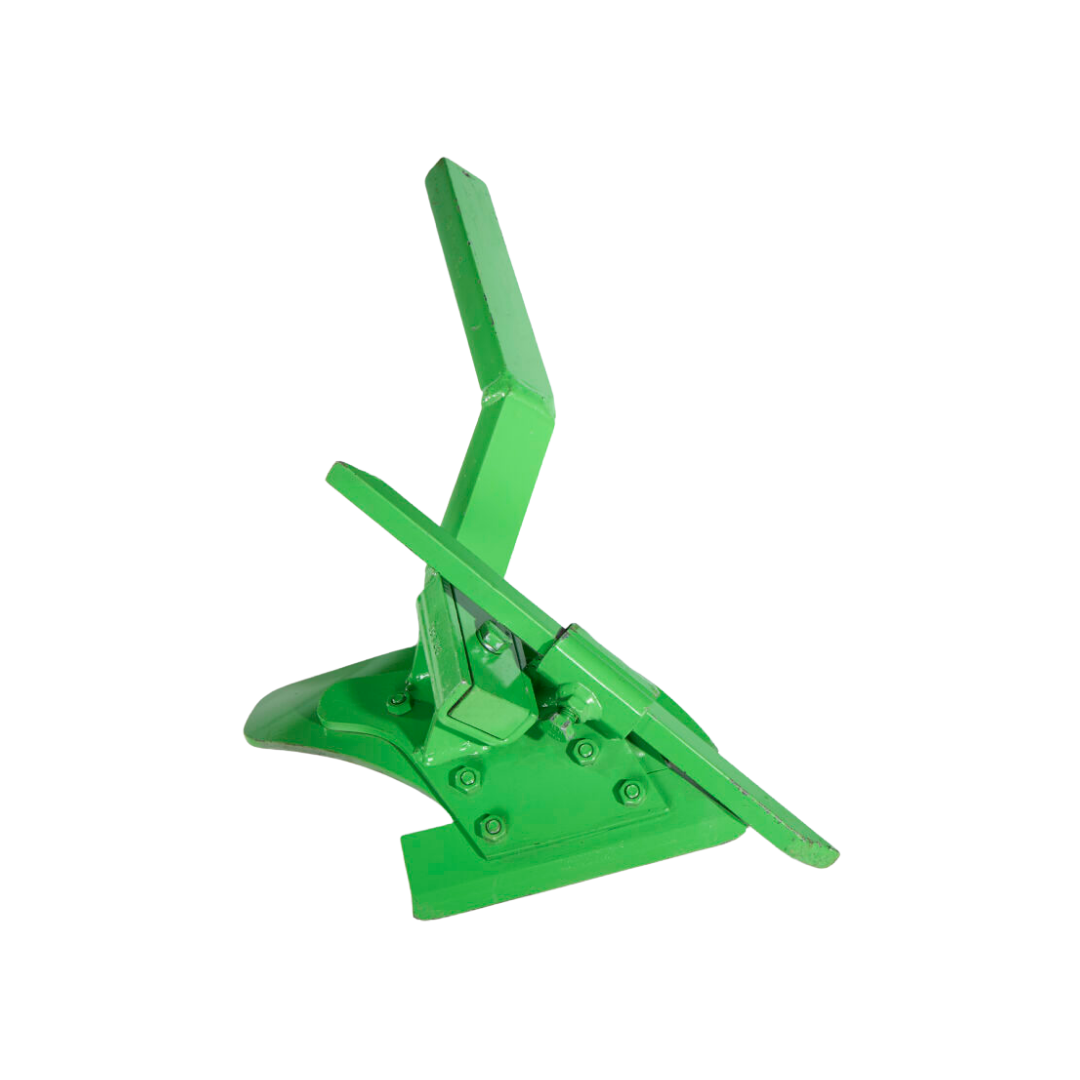

SOUSLIKOFF "BUTTALEX" inter-vine row shaper

> share and tong system > fixing by 50×30 boom or 50×50 block
> self-sharpening tongs with adjustment > buttage léger
> boom with 100 mm offset > versoir retaillé
Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto_enjambeur_milieu_1

All widths

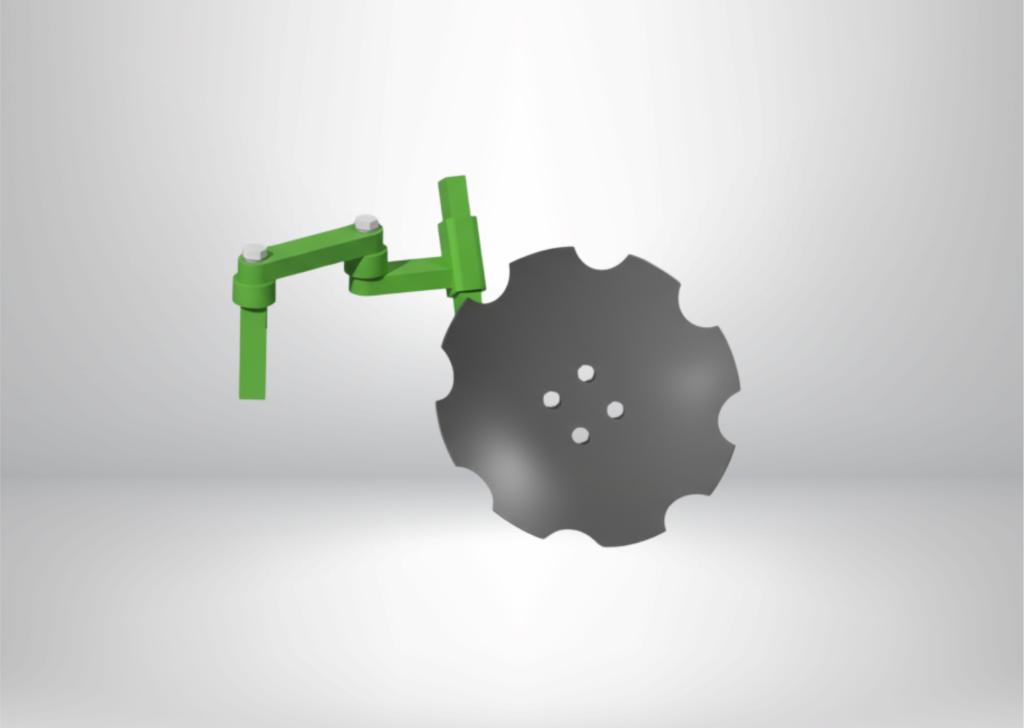

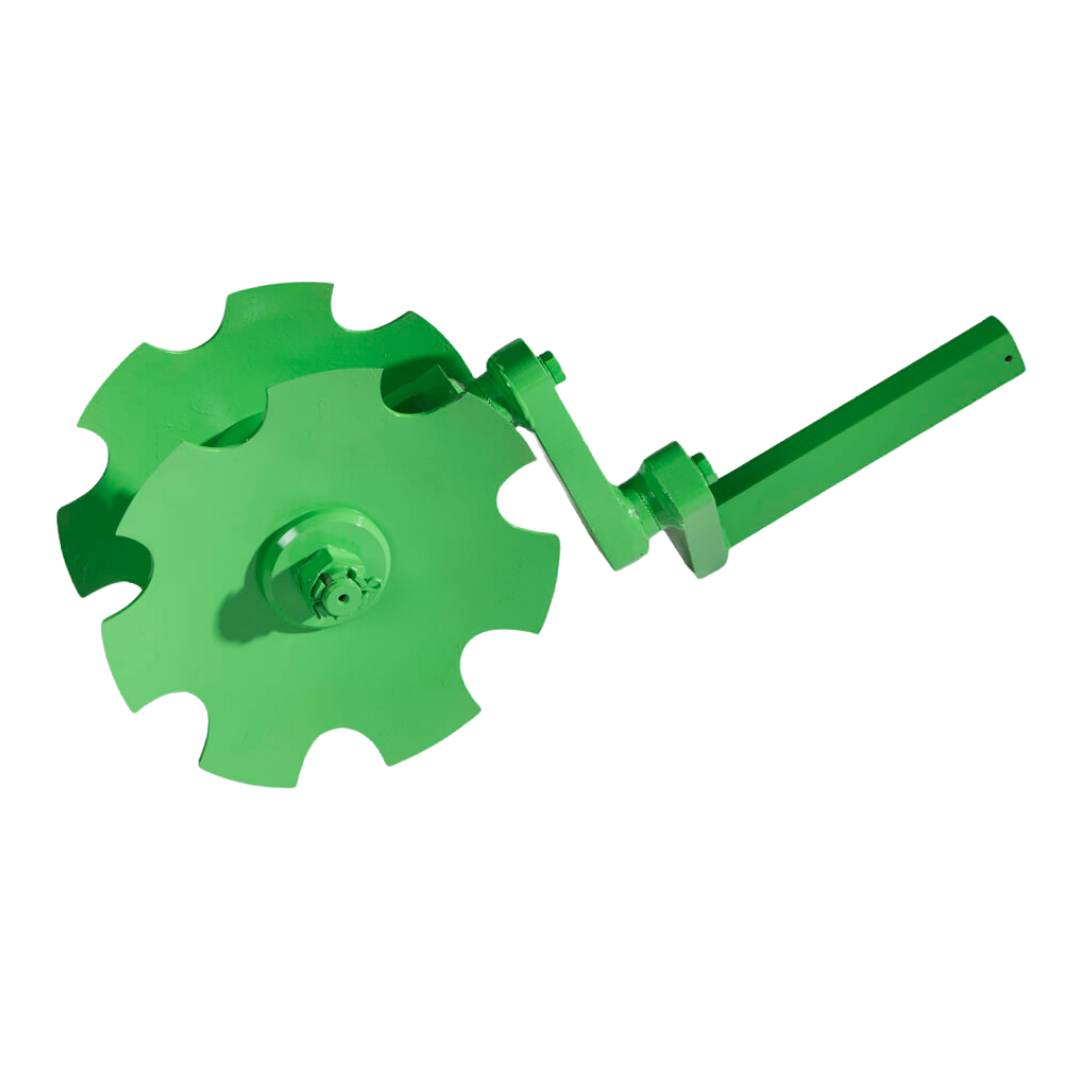

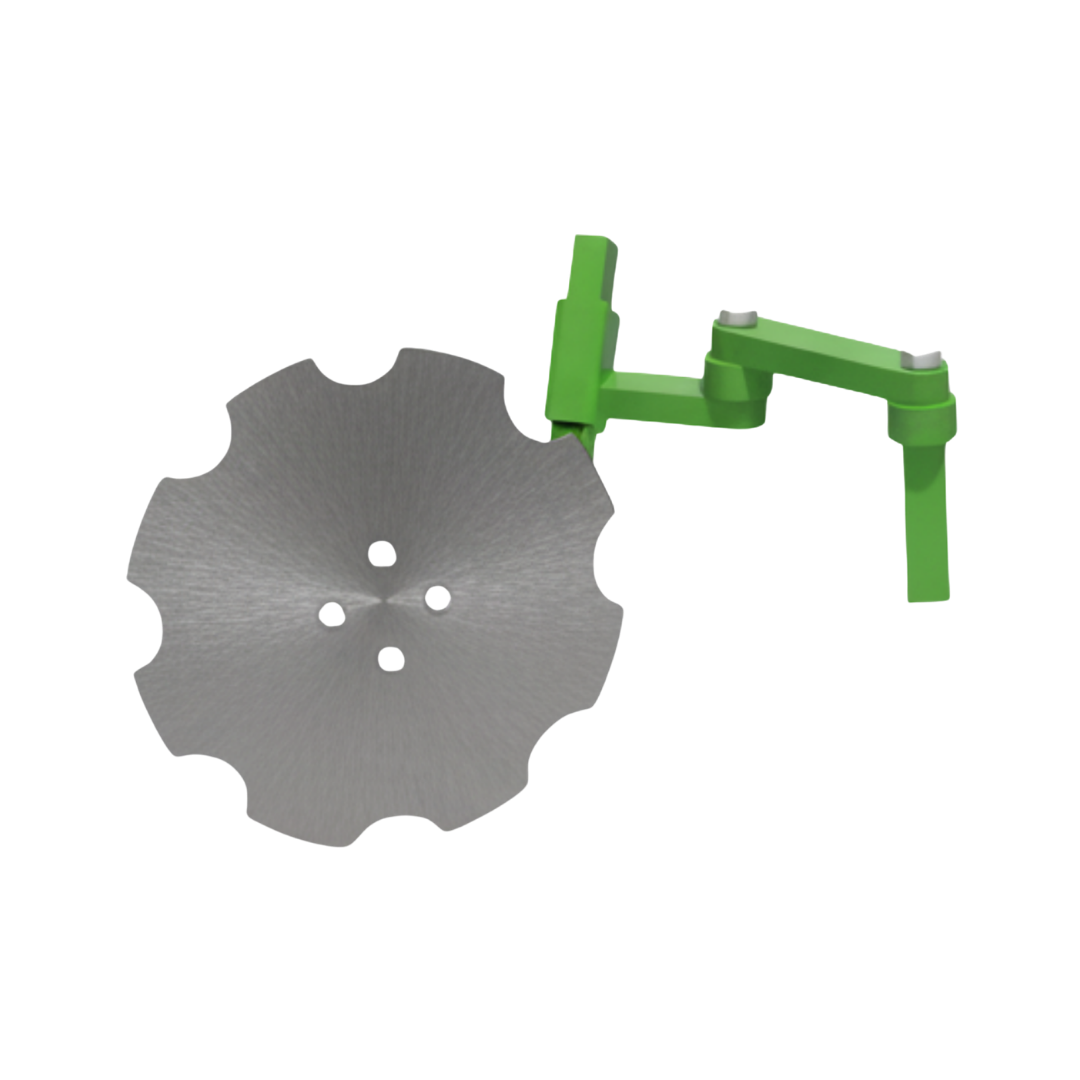

DISCS

> treat steel discs > adjustable > integrated offset > double or triple coulter model with crumbler discs > double coulter model with lump breaker discs > disc diameter 350 mm
> réglage fin par noix crantée et double déport
Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto_enjambeur_milieu_1

All widths

MEDOC INTER-VINE HOE

> mechanical inter-vine blade for hoeing to maintain rows > ideal for summer shaping > prop mounting > block oscillating on bearings > removable, interchangeable moulboard > fixing by 50×30 boom
> simple system > use on established plantations > stanchion to break up clods > can be used on the DECALEX Air parallelogram

> lame plate sans versoir
> lame cornière pour sol sableux

Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto_enjambeur_milieu_1

All widths

INTER-ROW FRAMES

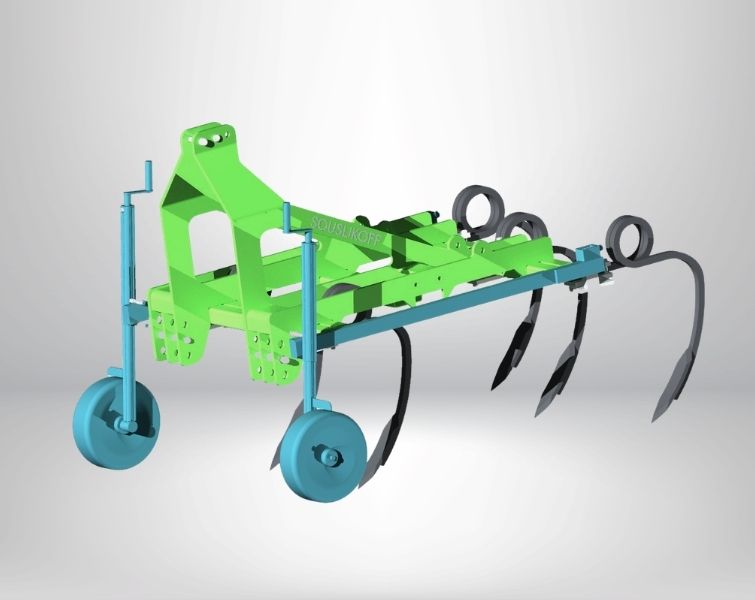

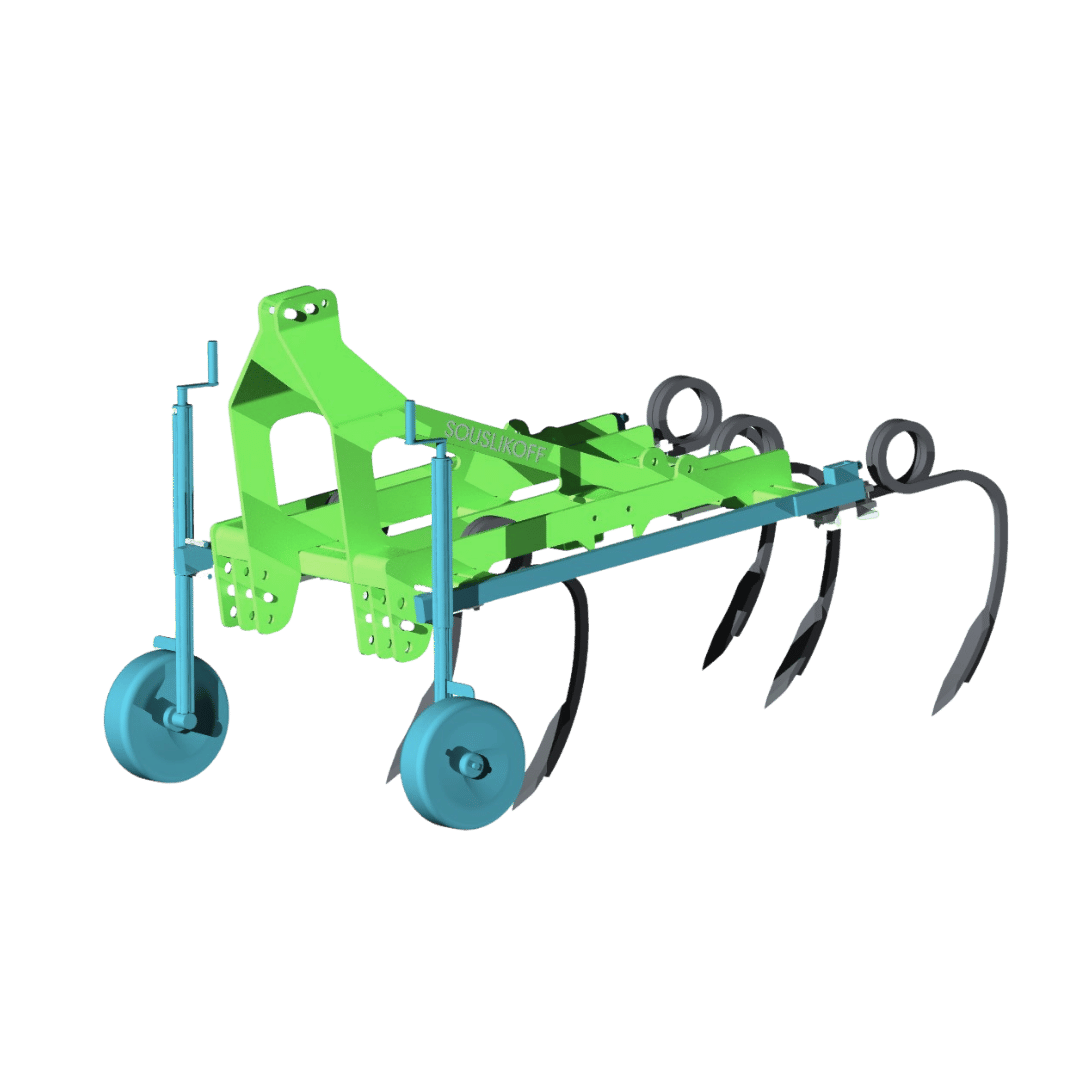

SPIRO FRAME

> 25X25 square spiral shanks with large collection capacity > manual adjustment of the spacing between the 2 beams > beam section 50×30 with 50×30 blocks for attaching double discs (or others) > anti-drift disc fixing block > mounting of the various tolls by clamping (optional) > iron depth control wheels with crank diameter 300
> versatile > robust > possibilité de montage de combinaison d’outils
> symmetrical hydraulic spacing > hydraulic L/R spacing and offset > different wheel types > cage roller
Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto_enjambeur_milieu_1

3 points
Cat 1&2

1m60 <-> 2m10
2m00 <-> 2m50
2m50 <-> 3m00

Picto_enjambeur_milieu_1

1m60 <-> 2m10
2m00 <-> 2m50
2m50 <-> 3m00

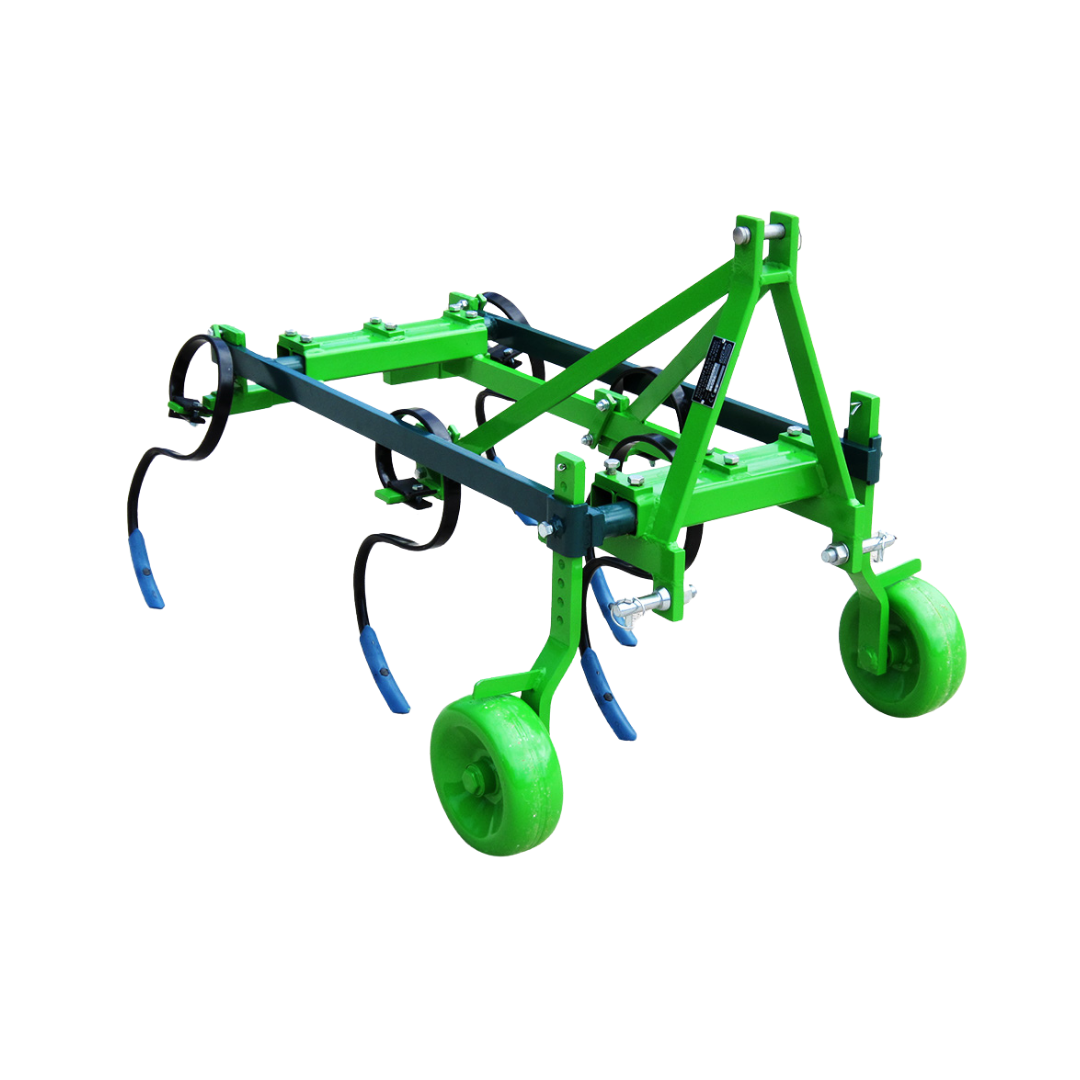

CANADIAN / POMEROL FRAME

> Kongskilde-type flexible spiral shanks > counter-bent external shanks, mounted on square slide > 50×30 section beams > manual adjustment of the spacing between the 2 beams > tool mounting by clamping or blocks (optional) > offset shoes
> versatile > lightweight > possibility of mounting combinations of tools > work very close to the vines
> symmetrical hydraulic spacing > different wheel types > anti-drift disc fixing block
Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto_enjambeur_milieu_1

3 points
Cat 1&2

1m30 <-> 1m80
1m50 <-> 2m00

Picto_enjambeur_milieu_1

1m30 <-> 1m80
1m50 <-> 2m00

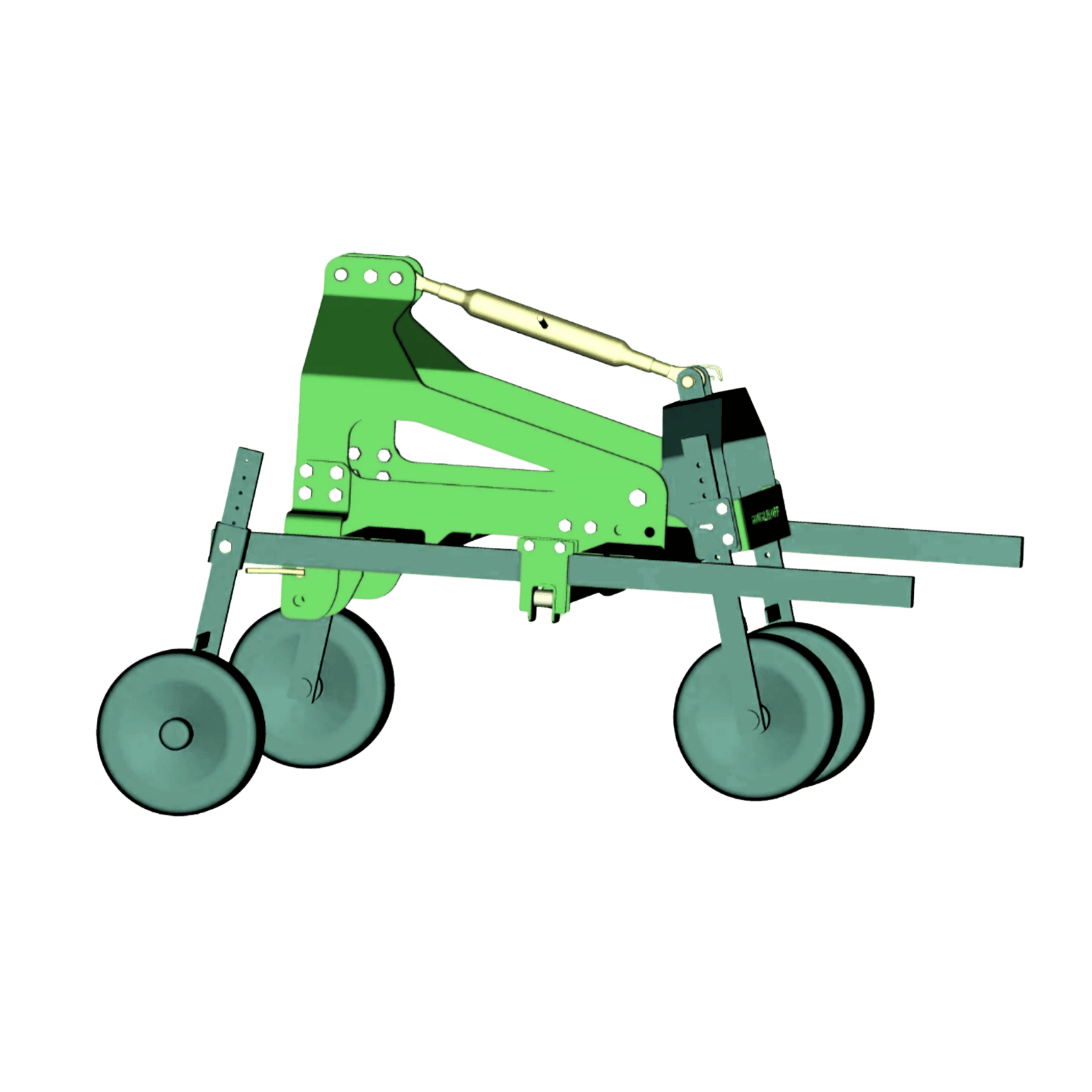

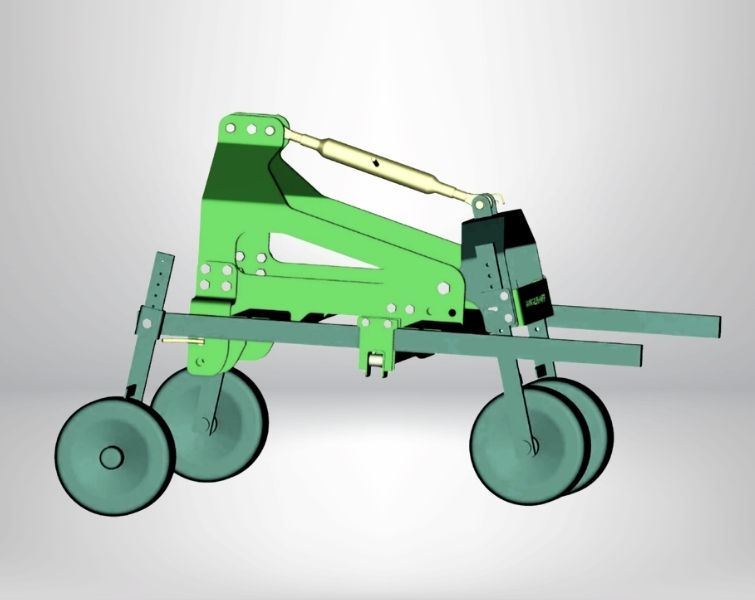

TOOL CARRIER FRAME

> no shank mounting > 60×30 section beams > manual adjustment of the spacing between the 2 beams > tool mounting by clamping or blocks (optional) > iron depth control wheel with boom Ø320

> simplicité
> polyvalence
> montage frontal (option)
> montage de combinaisons d’outils

> écartement hydraulique par double vérin
> berceau pour roues centrales
> différents types de roues
> gogue de fixation pour disque ou bineuse type Kress
> gogue de fixation pour disque anti-dérive

Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto_enjambeur_milieu_1

3 points
Cat 1&2

1m30 <-> 2m00
2m00 <-> 2m50

3 points
Cat 1&2

Picto_enjambeur_milieu_1

1m30 <-> 2m00
2m00 <-> 2m50

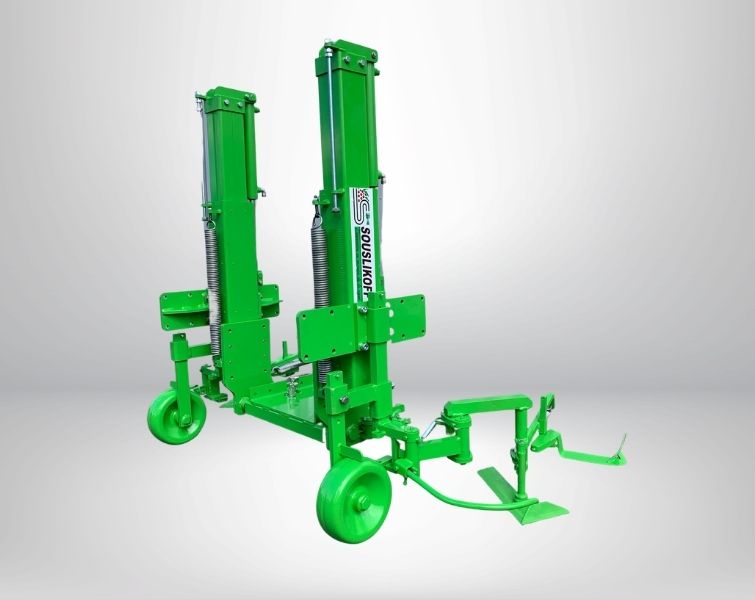

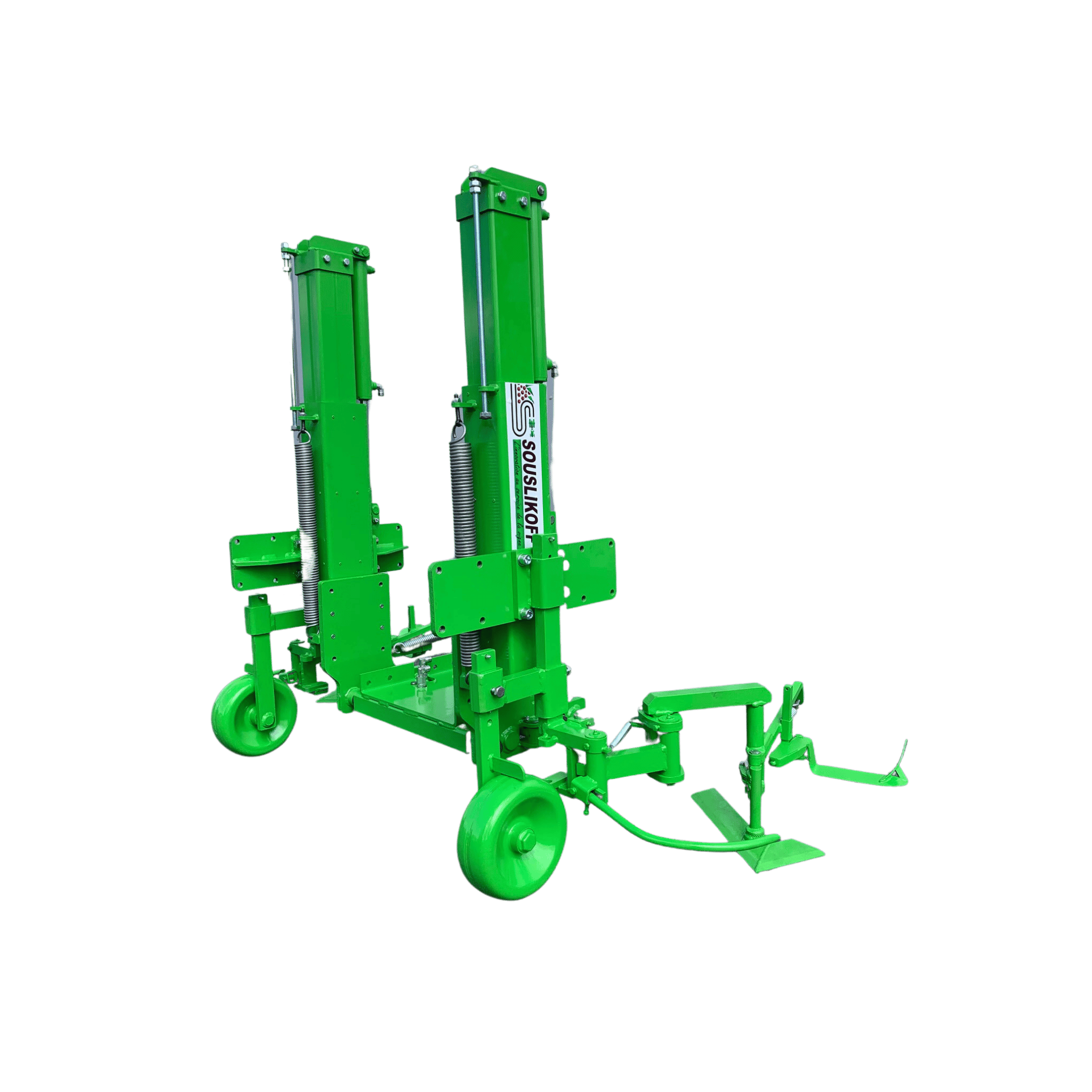

SLIDING TOOL CARRIER

> slide system with friction brackets > 300mm stroke electric cylinder with control box > 300mm stroke hydraulic cylinder, single acting with depteh adjustment > gas spring lift assistance > tool fixing with 50×30 block or adaptable plate > fixing on beam by clamping
> reduced footprint > tool versatility > possibility of electric cylinder assistance
> Soltronic (depth control with electric cylinder) > position and depth control
Picto positionnement arrière du matériel souslikoff concept sur un tracteur interrang
Picto positionnement latéral du matériel souslikoff concept sur un tracteur interrang
Picto_enjambeur_milieu_1

3 points
Cat 1&2

Toutes largeurs

Picto_enjambeur_milieu_1

All widths
