AUGERS

FORALEX CLASSIC - TAR01

FEATURES

> 180° R/L orientation (2.10 m – 1.70 m)
> double-acting cylinders for raising/lowering and R/L
> straight vertical descent with sliding tube
> removable head with clamps ans removable moulboards
> 40 L/min geared motor
> vertical stroke 800 mm
> head diameter 450 mm

BENEFITS

> multi-purpose auger
> precision of movement
> possibility of working on 1 or 2 rows
> front-mounted: reduced driver fatigue
> limited wear (straight vertical descent) > wire push sleeve: less friction and fewer broken wires

OPTIONS

> short beam
> stake / bit driving
> rear 3-point linkage
> electro-hydraulic controls

27l/min 180 bar

Toutes largeurs

All widths

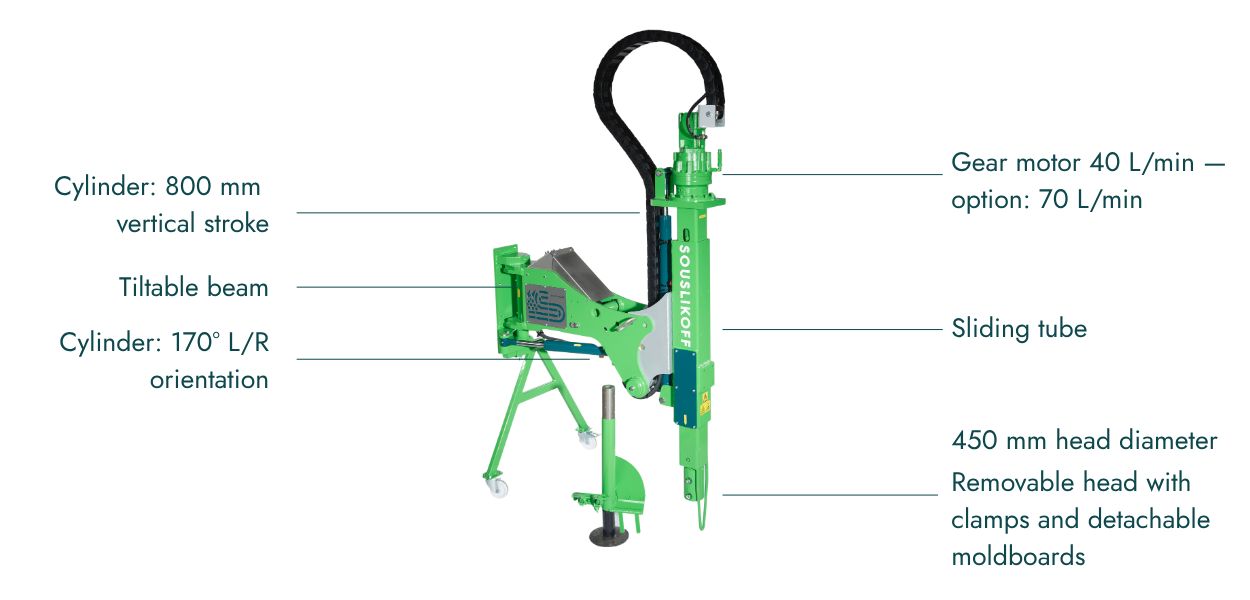

FORALEX SUPER - TAR 05

FEATURES

> 170° R/L orientation (2.40 m)
> double-acting cylinders for raising/lowering and R/L
> mechanically welded tilting beam
> straight vertical descent with sliding tube : precise movements
> removable head with clamps and removable mouldboards
> 40L/min geared motor as standard
> vertical stroke 800 mm – head diameter 450 mm

BENEFITS

> multi-purpose auger with small footprint
> possibility of working on 1 or 2 rows
> front-mounted: reduced driver fatigue
> limited wear (straight vertical descent) > wire push sleeve: less friction and fewer broken wires

OPTIONS

> 70l/min geared motor > short beam
> hydraulic tilting
> electro-hydraulic controls
> fast coupling
> special rock head > post driver, mooring driver, bits

30l/min – 180 bar 70l/min – 180 bar

Toutes largeurs

All widths

FORALEX COMPACT - TAR 04

FEATURES

> short beam
> 90° R/L orientation
> double-acting cylinders for raising/lowering and R/L
> Straight vertical descent with sliding tube : precise movements
> removable head with clamps and removable mouldboards
> 40 L/min geared motor > vertical stroke 600 mm – head diameter 450 mm

BENEFITS

> multi-purpose auger with small footprint
> possibility of working on 1 or 2 rows
> front-mounted: reduced driver fatigue
> limited wear (straight vertical descent)
> wire push sleeve: less friction and fewer broken wires

OPTIONS

> post driver
> bits

27l/min 180 bar

Inférieure 1m30

Less than 1m30

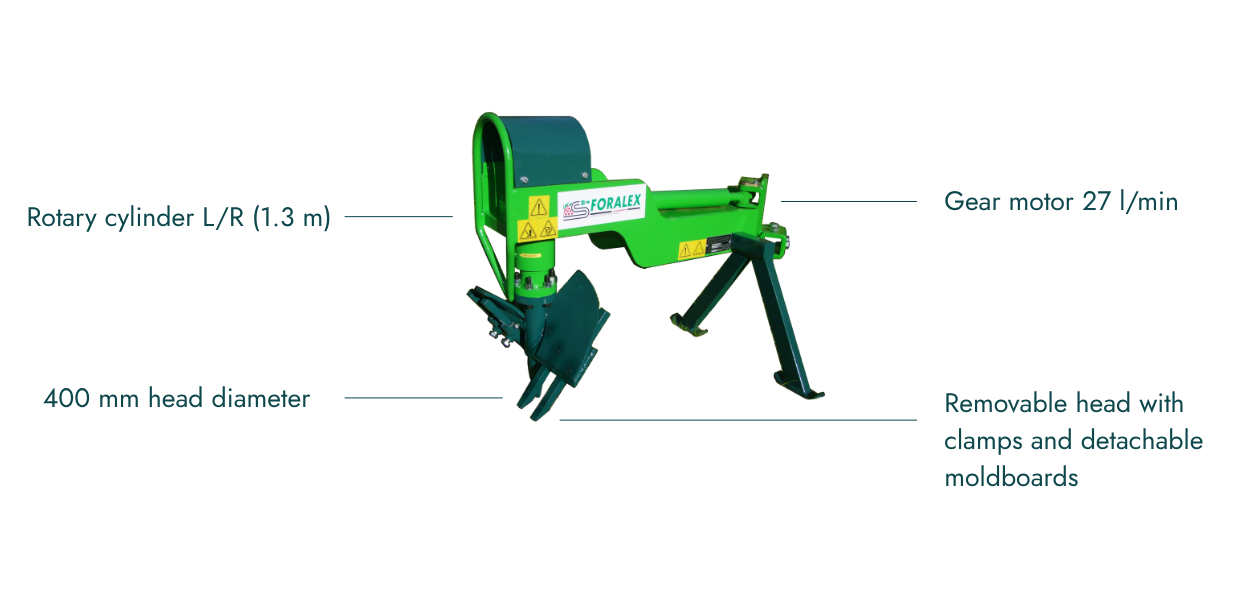

FORALEX LIGHT - TAR 03

FEATURES

> R/L orientation with double-acting cylinder (1.30 m)
> installation between the tractor wheels
> raising & lowering via the tool carrier – vertical travel of tractor tool carrier
> removable head with clamps ans removable mouldboards
> head diameter 400mm

BENEFITS

> reduced footprint
> lightweight
> Enables 2 rows to be worked

OPTIONS

> head extension
> electro-hydraulic controls

27l/min – 180 bar

27l/min – 180 bars

Less than 1m30

VIBRATING POST DRIVER

FEATURES

> drive in posts using a vibrating jack > counterweight favouring impact > mounts on our augers, pre-designed positioning > movement frequency 600 strokes / min > strike power 110 joules > post height 2,05m

BENEFITS

> low hydraulic requirement
> work on 2 rows

OPTIONS

> raising depending on the height of the posts
> iron post interface

25l/min – 180 bar

Toutes largeurs

All widths

ROCK BREAKER

FEATURES

> BRH-type post driver
> impact energy combined with cylinder descent
> mounts on ou augers, pre-designed postioning
> movement frequency 526-838 strokes/min
> strike power 350 joules > post height 2,30m

BENEFITS

> versatility of tools for use with BRH
> slide mounting for height adjustment

OPTIONS

> iron post interface
> point for BRH use

30l/min – 180 bar

Toutes largeurs

All widths
